Product Overview:

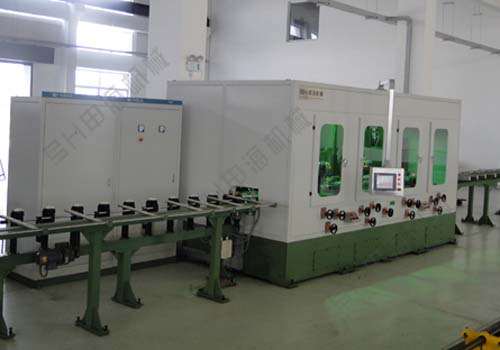

Belt centerless grinder is a specialized equipment used to grind or polish the surface of bar or steel tube. Based on the coreless grinding theory, it grinds and clears the tiny crack and defect of bar or steel tube, or surface polish to improve surface quality.
Typical Applications:
◇ Remove surface defect or polish for stainless steel tube or bar, zirconium, titanium tube, high temperature alloy tube, alloy tube or bar.
◇ Surface polishing before or after electroplating, for instance piston rod, decorative tube, golf clubs, shafts etc.
◇ Grinding for boiler tube, super alloy rod.
◇ Rust removal, burring for rod surface.
Parameter and Configuration:
◇ Vertical, horizontal and vertical low configuration structure
Vertical structure: long piece Φ5.5--Φ30
short piece Φ5.5--Φ100
Horizontal structure: more than Φ30
Horizontal low configuration structure: match with others except mail machine.
◇ it is composed of sets of grinding head with different station , fixed the belt of different grain, to achieve the continuous process from coarse grinding, half fine grinding, fine grinding to polishing.
◇ Totally enclosed, to prevent from noise, water or dust, guarantee the operating comfortableness and safety. Low configuration open-type is also a good choice, has good quality.
◇ It uses wet grinding or dry grinding.
◇ It can be configurated loading and unloading table, to achieve workpieces automatic loading,unloading and volume production.
◇ Automatic operation.
