Product Overview:

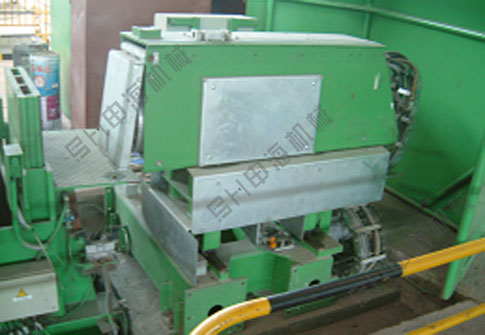

Rotary head printer is used to print symbol on the steel end face. It is achieved through the impact cylinder blows the first letter which is fixed on the rotating head, array is set on the interface, automatic printing.
Parameter and Configuration:
◇ It is drived by AC servo motor, high accuracy position, quick response speed.
◇ It uses impact cylinder of special design, fast speed and powerful.
◇ Operate by touch screen, set the print characters freely. It can be operated by automatic or manual.
|
material
|
Carbon steel,alloy steel
|
Size
|
Φ60--Φ400
Φ55--Φ400
|
|
Surface request
|
Level,surface roughness <1mm
|
Temperature
|
800--950℃
|
|
Number of characters
|
10--36
|
Height
|
5--20mm
|
|
Character pitch
|
4--9mm
|
Printer lines
|
2
|
|
Depth
|
About 1.5mm
|
Air pressure
|
0.4 Mpa
|
|
Total power
|
5KVA
|
Time
|
1S per character
|
